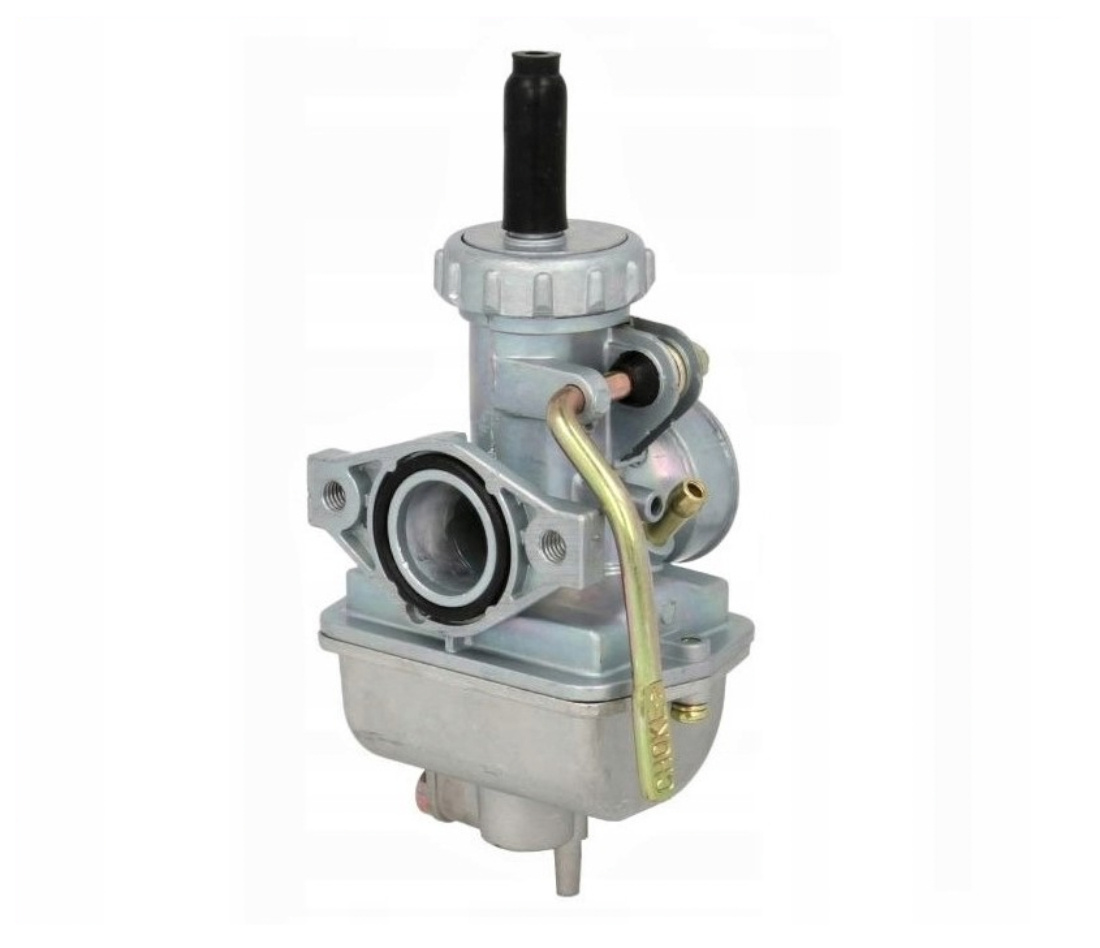

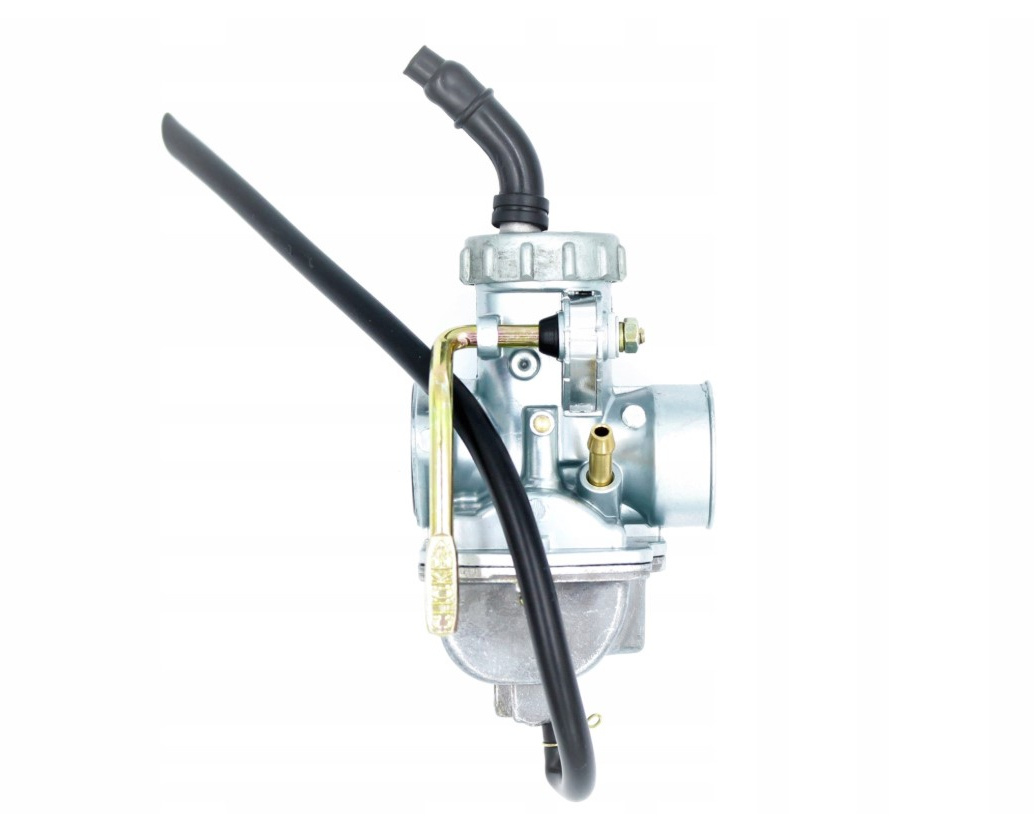

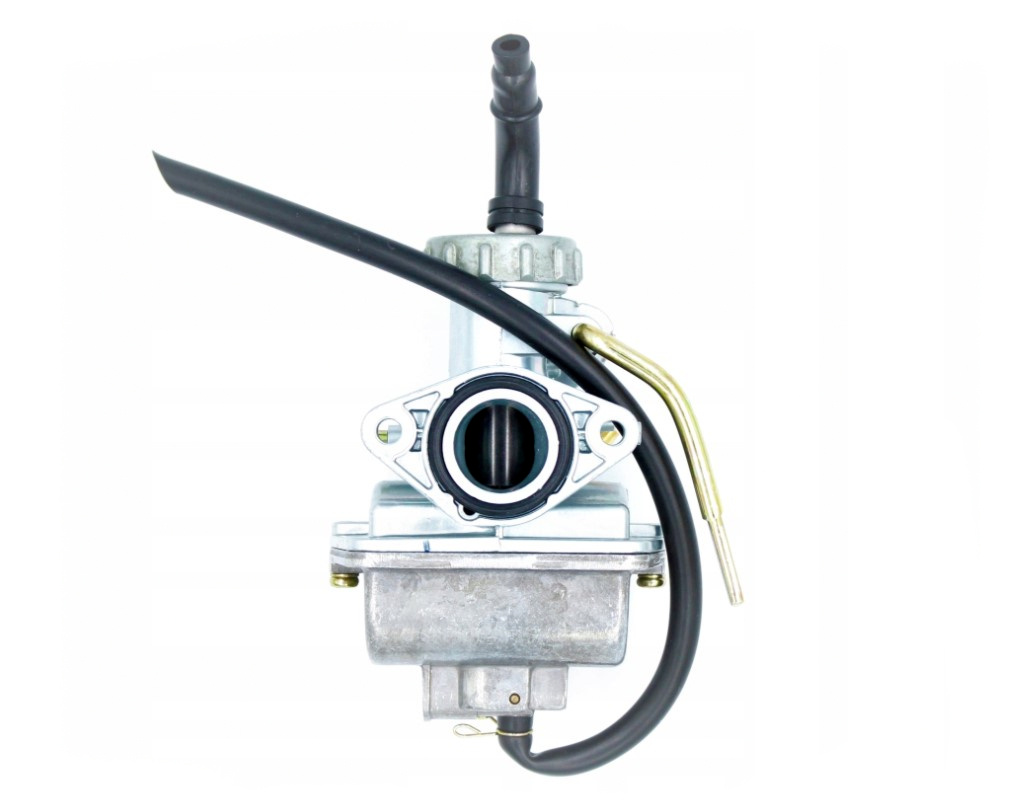

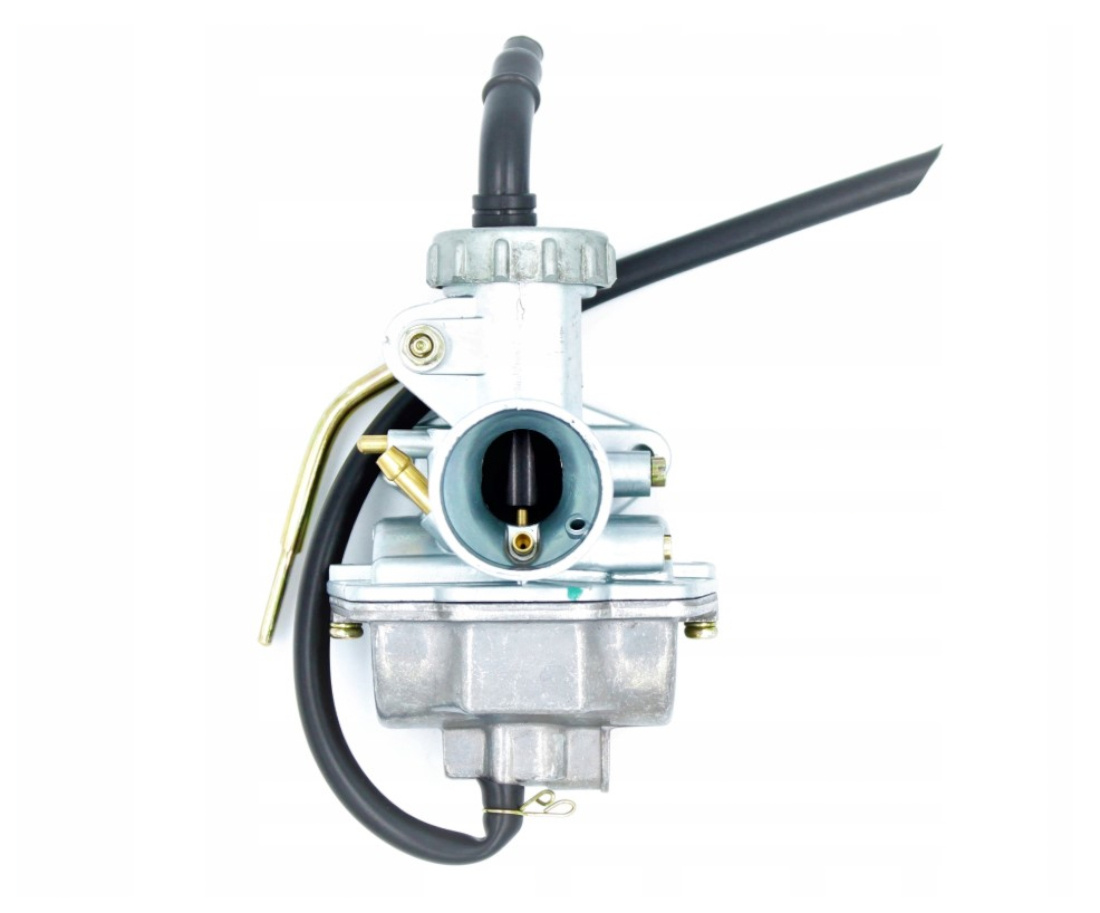

PZ16 4T carburetor with manual, ratchet choke lever, designed for four-stroke engines with a capacity of 50–110 cc. The design features a rigid, bolted connection to the intake manifold.
- Carburetor type: PZ16 4T
- Design designation: JH70/C70
- Choke operation: manual, ratchet
- Throttle body diameter: 16 mm
- Throttle body diameter: 16 mm
- Connection to cylinder: rigid, bolted
- OEM number: not specified in the provided specifications
Dimensions:
- Overall length: 65 mm
- Overall height: 117 mm
- Outer diameter of the filter-side port: 31 mm
- Inner diameter of the filter-side port: 29 mm
- Inner diameter of the intake manifold: 17 mm
- Hole spacing between the port and the cylinder head: 48 mm
Technical compatibility: Chinese four-stroke engines with the designations 139FMH and 150FMH, with a displacement of 50–110 cc.
Product number: GZC000015
