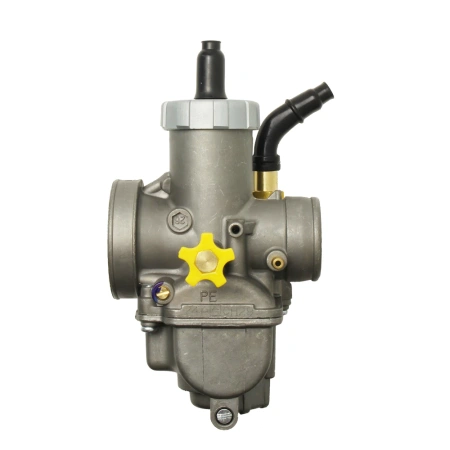

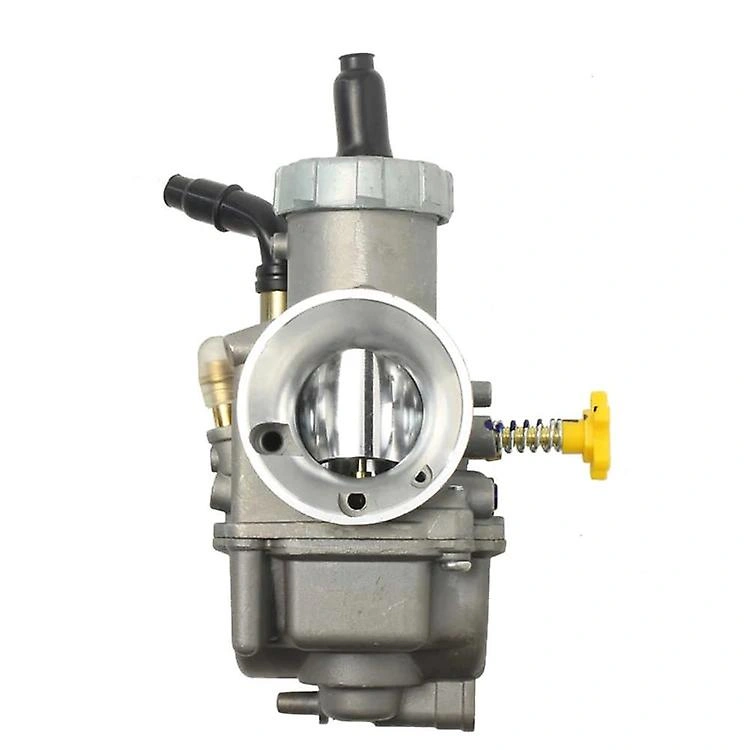

PE28 carburetor designed for two- and four-stroke engines with a displacement of 80 to 350 cm?. The round slide design provides direct throttle response and mechanical control of the fuel-air mixture.
- Carburetor Type: PE28
- Throttle Diameter: 28 mm
- Exhaust Hole Diameter: 28.5 mm
- Air Filter Port Diameter: 49 mm
- Air Filter Connecting Tube Diameter: 48 mm
- Inner Diameter of Cylinder Port: 35 mm
- Mounting Hole Spacing: 48 mm
- Main Jet: 118 mm
- Runner Jet Idle Speed: 42
- OEM Number: 16100-KW6-841
- Part Number: 2.9706.8003S
The carburetor is equipped with a flexible rubber intake manifold and an air filter connection in the form of a 48 mm diameter tube. The connection parameters should be compared with the dimensions of the components installed in the vehicle before purchase.
This component can be used on pit bikes, motocross and enduro motorcycles, and ATVs and quads equipped with engines of the appropriate capacity and intake system design.
For modified engines, including those with increased displacement or a modified exhaust system, carburetor adjustment is necessary by selecting the appropriate jets and setting the mixture. Before installation, verify the connection diameters, mounting spacing, and the requirements of the specific engine.
